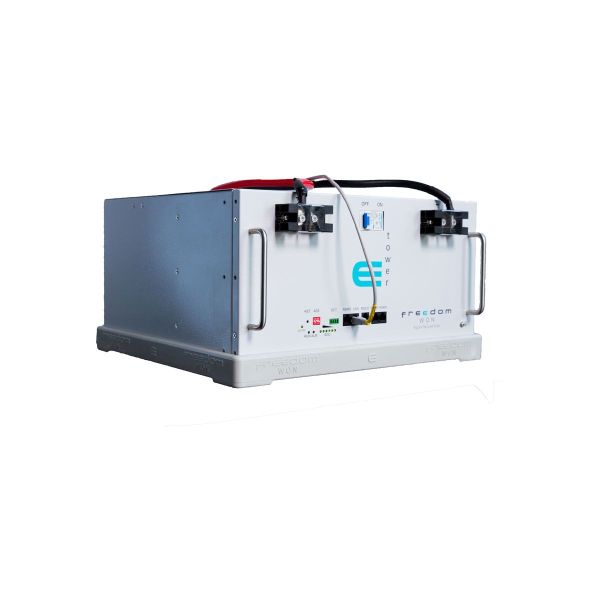

Freedom Won eTower 5kWh LiFePO4 Battery 52V

Freedom Won eTower 5kWh LiFePO4 Battery 52V

Key Features:

• Communication and Control Interfaces (See manual for further details):- CAN Bus (RJ45 Socket x 1) – for interfacing with compatible inverters and system controllers (the eTower is fully
  compatible with all common CAN bus compatible brands).
  – RS485 (RJ45 Socket x 1) – for interfacing with the Voltronics Axpert range of inverters equipped with a RS485
  lithium battery interface and the applicable firmware.
  – RS232 (RJ45 Socket x 1) – for interfacing with a PC for firmware and setting updates (only by Freedom Won
  technicians).
  – RS485 (RJ45 x 2) – for the communication connection of parallel batteries up to four in tower.
  – Digital Outputs x 2 – for controlling external relays based on pre-set functions.

• Protection:
  Internal electronic protection including overcurrent, cell under and over voltage, temperature out of range, weak cell detection, minimum SOC control, active voltage based charge current limiting. Do not short circuit or connect in reverse polarity!
• Human Interface:
  -State of Charge Display (0 to 100% indicated by six green LED’s)
  -Alarm LED (red)
  -Run LED (green)
  -On LED (green)
  -BMS Reset Button
  -Main On/Off Switch
  -Serial RS232 Plug for Programming via PC (by Freedom Won only)
  -Dip Switch block for selecting module addresses.
• Warranty:
  10 years limited warranty
• Packaging:
  One e5000 per cardboard box complete with above included accessories.
• Certificate of Compliance:
  UN 38.3 / IEC 62619

Product Datasheet
